Install the MT5 EA

Install and connect the PineConnector EA on your own Windows computer or Windows VPS.

This is the Your PC or VPS route of Connect MT5: you run MetaTrader 5 yourself on a Windows computer or Windows VPS. When the EA is connected, continue to the same demo test as Edge users. Using PineConnector Edge instead? Edge already runs the EA for you.

Install PineConnector on MetaTrader 5

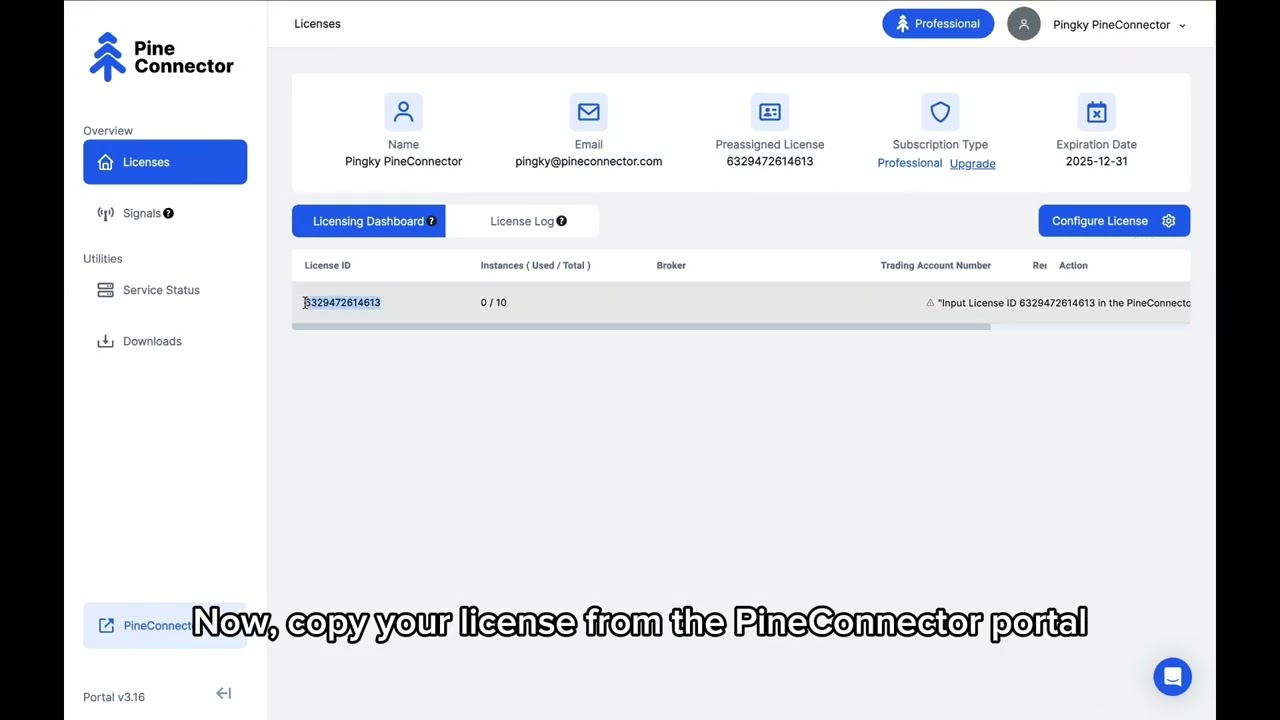

Published MT5 walkthrough. Download the current EA from Portal; some version numbers and interface details in the video are historical.Watch on YouTube
Written summary

Download the EA, extract its two files into this terminal’s Experts folder, enable algorithmic trading and DLL imports, attach the EA to a chart, enter your License ID, then confirm the account in Portal. The full steps are below.

  • Install your broker’s MetaTrader 5 terminal and sign in to the intended account. Use demo for your first test.
  • Have access to PineConnector Portal and an available connection.
  • Use a Windows environment that supports the PineConnector EA and its DLL. The published compatibility guide lists Windows 10/11 and Windows Server 2016/2019/2022; use an operating system maintained by you or your VPS provider.
  • Plan to keep MT5 running. This account can act on alerts only while its terminal is open, signed in to the broker and running the EA. If your computer will not stay on, use a Windows VPS.

For a Mac, connect with Edge or use a Windows VPS. The published guide does not support installing this Windows DLL workflow directly in macOS or in MetaQuotes’ built-in VPS service.

Open Downloads in Portal. Find MT5 EA, select Download, then choose the latest version shown.

The package checked on 3 November 2026 is EA 3.54.5, paired with DLL 1.26.5. Install both files from the same package. DLL 1.26.5 is a version bump with no DLL code change.

Keep the ZIP file available for the next step. Use the official Portal package rather than files from an unrelated indicator or a third-party download.

Portal navigation with Downloads selected and the MT5 EA v3.54.5 Download menu open
Downloads on 3 November 2026. The MT5 card offers 3.54.5 (Latest), and its changelog names DLL 1.26.5.
Downloads on 3 November 2026. The MT5 card offers 3.54.5 (Latest), and its changelog names DLL 1.26.5.Open original
Portal navigation with Downloads selected and the MT5 EA v3.54.5 Download menu open
MT5 EA v3.54.5 card and its 3.54.5 Latest download choice
The MT5 EA card with its 3.54.5 (Latest) download choice.
The MT5 EA card with its 3.54.5 (Latest) download choice.Open original
MT5 EA v3.54.5 card and its 3.54.5 Latest download choice

In the MT5 terminal you are setting up, select:

  1. File
  2. Open Data Folder
  3. MQL5
  4. Experts

The Experts folder holds Expert Advisors for that terminal. Opening it from MT5 helps you avoid putting the files into a different installation’s data folder.

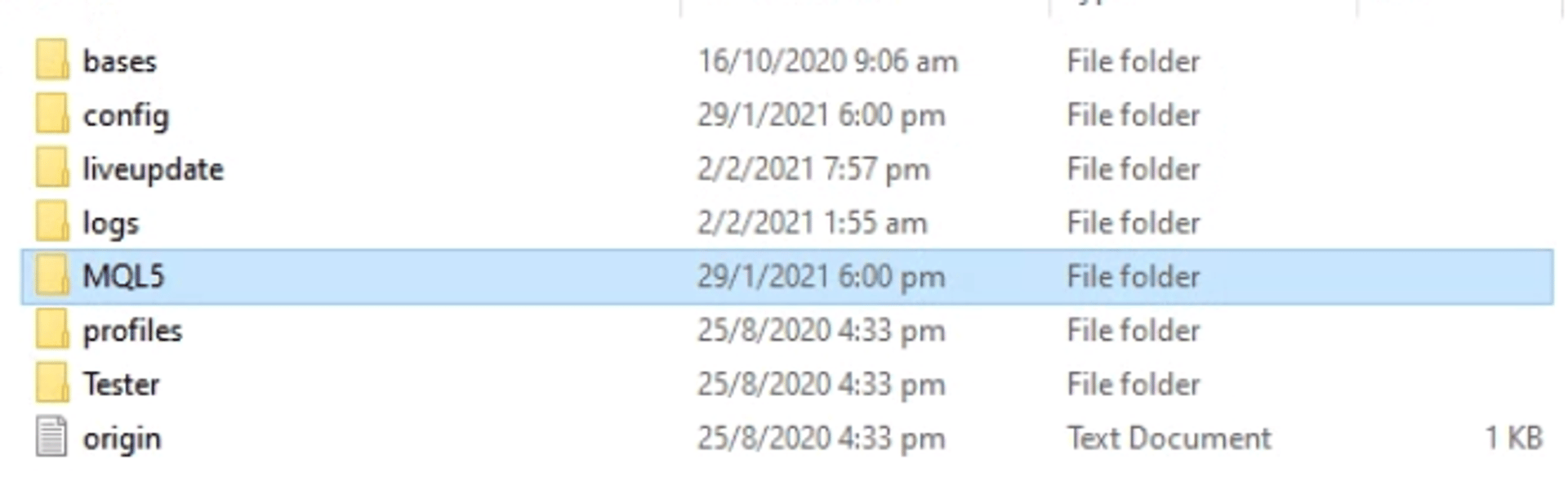

MQL5 folder highlighted in the MetaTrader data folder
The MQL5 folder in this terminal’s data folder. Experts is inside it.
The MQL5 folder in this terminal’s data folder. Experts is inside it.Open original
MQL5 folder highlighted in the MetaTrader data folder

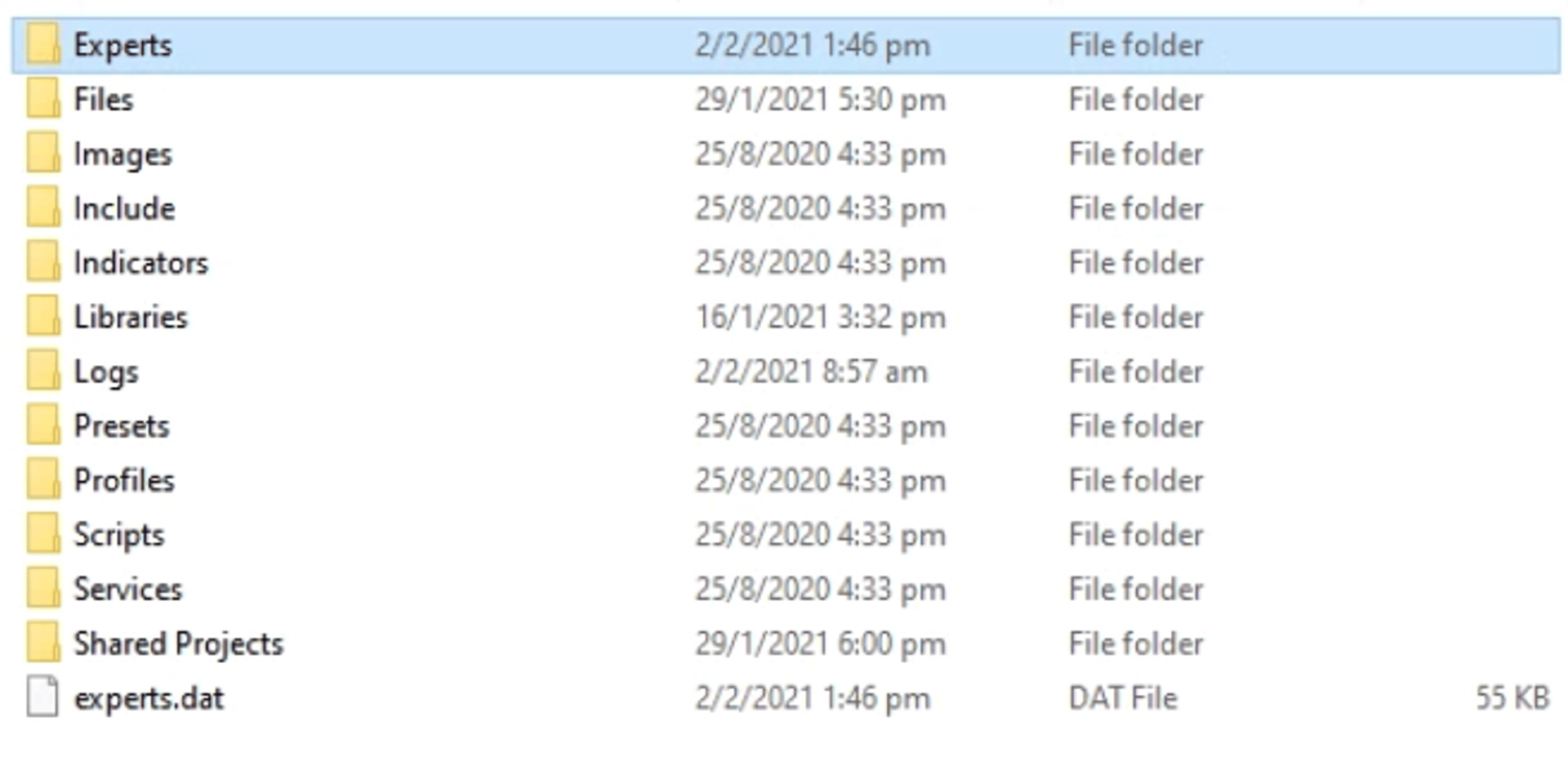

Experts folder highlighted inside MetaTrader's MQL5 data folder
The Experts folder inside the MQL5 folder of the terminal you are configuring.
The Experts folder inside the MQL5 folder of the terminal you are configuring.Open original
Experts folder highlighted inside MetaTrader's MQL5 data folder

Extract the downloaded ZIP’s contents directly into MQL5 → Experts. The published package instructions identify the two PineConnector files by these names:

  • PineConnector-MT5-EA
  • PineConnector-MT5-DLL

Keep the names and extensions supplied in the downloaded package. Both files should be in Experts itself, rather than inside another ZIP or an extra nested folder.

Check: you can see both extracted files in the folder before returning to MT5.

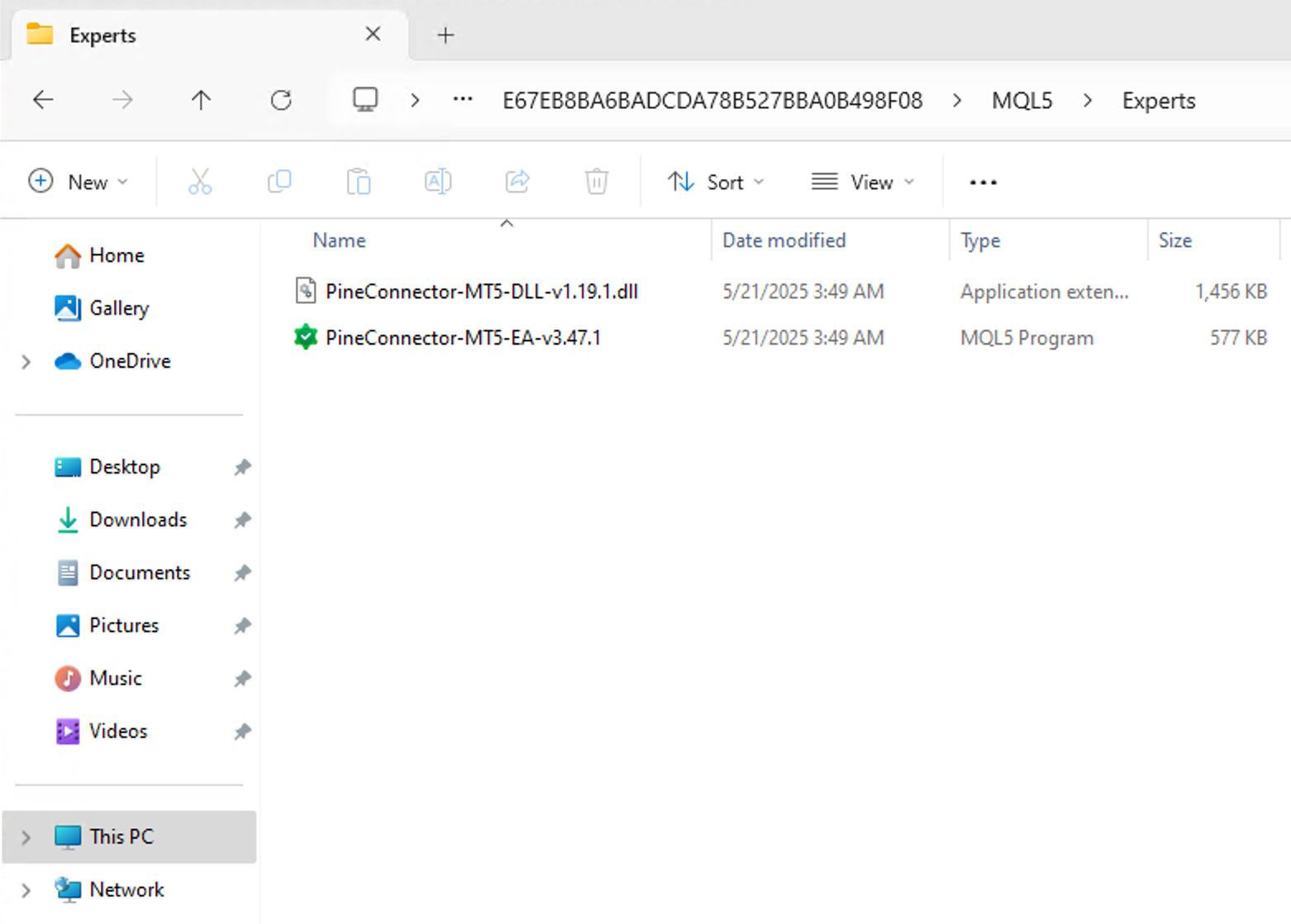

PineConnector EA and DLL files together directly inside the Experts folder
Both files belong directly in Experts. Version numbers in this published screenshot are historical; retain the filenames in your current package.
Both files belong directly in Experts. Version numbers in this published screenshot are historical; retain the filenames in your current package.Open original
PineConnector EA and DLL files together directly inside the Experts folder

4. Allow algorithmic trading and DLL imports

Section titled “4. Allow algorithmic trading and DLL imports”

In MetaTrader, open:

  1. Tools
  2. Options
  3. Expert Advisors

Tick Allow algorithmic trading and Allow DLL imports, then select OK.

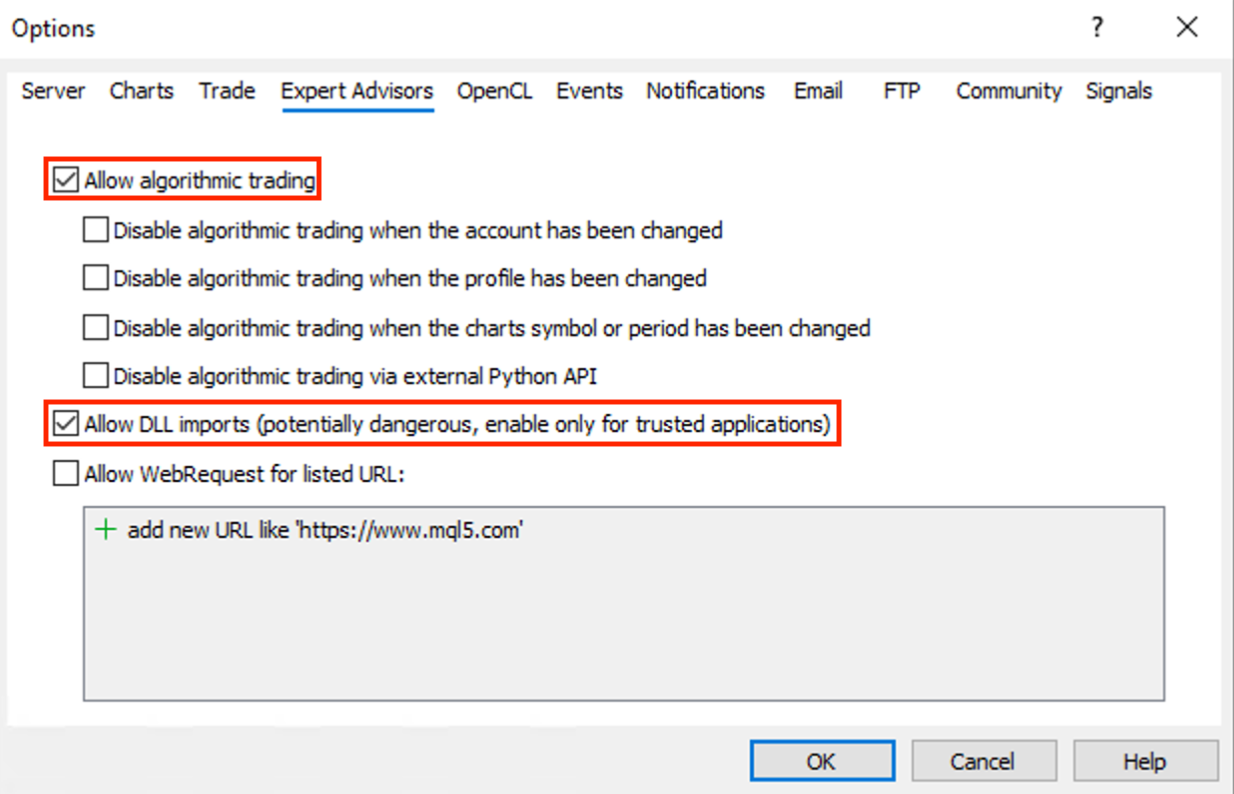

MetaTrader Options showing Allow algorithmic trading and Allow DLL imports selected
These are the two permissions required by the published PineConnector MT5 installation guide.
These are the two permissions required by the published PineConnector MT5 installation guide.Open original
MetaTrader Options showing Allow algorithmic trading and Allow DLL imports selected

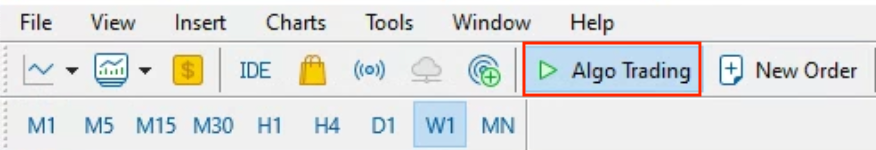

Check the Algo Trading button at the top of MT5. Enable it if it is off; the published screenshot shows its active green indicator.

MetaTrader toolbar with Algo Trading enabled and its green indicator visible
The toolbar control must be enabled as well as the EA's own permission.
The toolbar control must be enabled as well as the EA's own permission.Open original
MetaTrader toolbar with Algo Trading enabled and its green indicator visible
  1. Open Navigator with .
  2. Right-click Expert Advisors and select Refresh.
  3. Find PineConnector MT5 EA.
  4. Right-click it and select Attach to Chart on the chart you want to use.

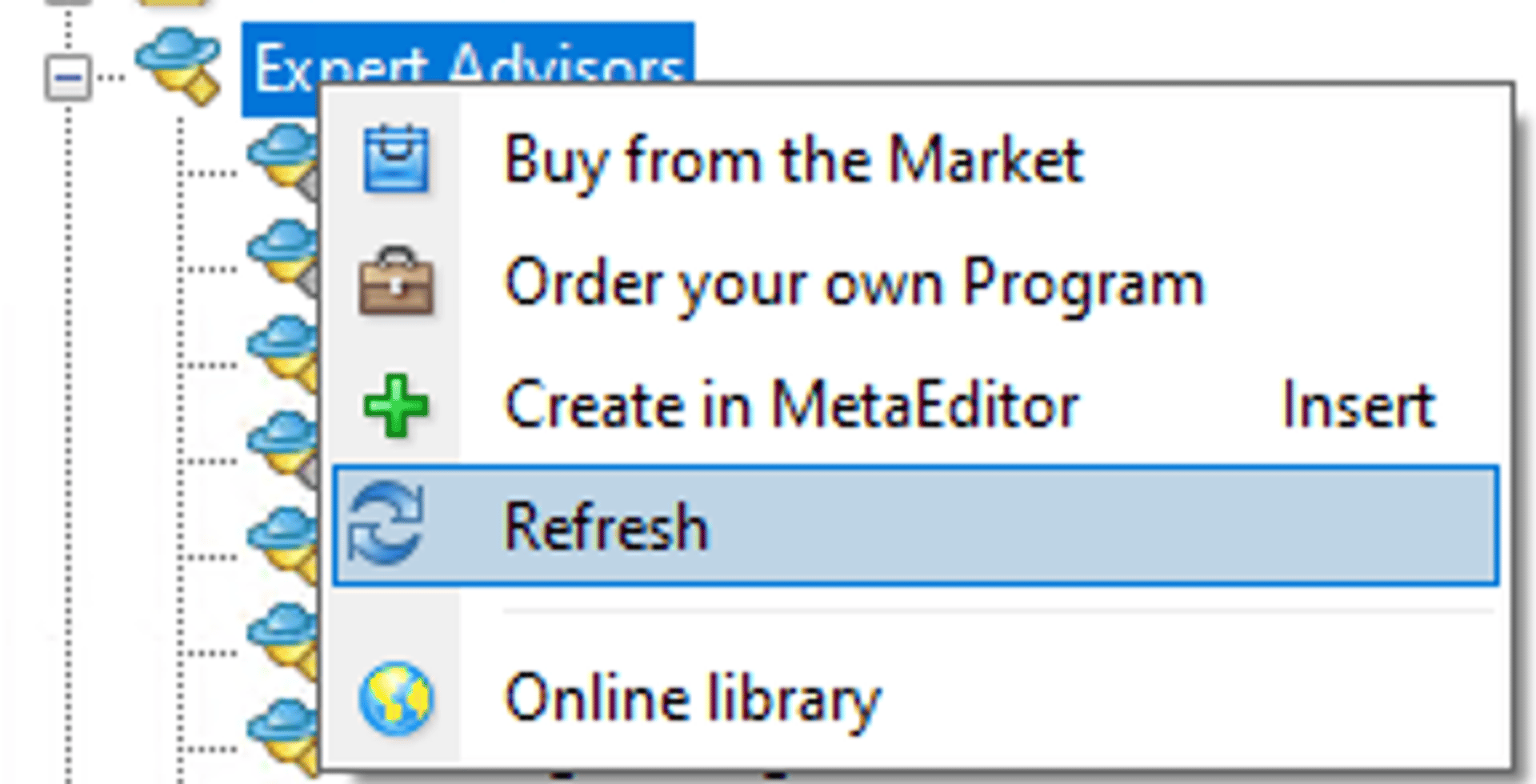

Refresh command selected in the Navigator Expert Advisors context menu
The Refresh command in the Navigator. Refreshing after copying the files lets MT5 find the EA.
The Refresh command in the Navigator. Refreshing after copying the files lets MT5 find the EA.Open original
Refresh command selected in the Navigator Expert Advisors context menu

One EA is enough for the normal single-account setup. You do not need to attach it to every symbol’s chart. The published guide allows the connected EA to process symbols available in that account’s Symbol List. For intentional advanced isolation, read Keep strategies separate first.

In the properties window that opens:

  • On Common, tick Allow Algo Trading.
  • On Dependencies, tick Allow DLL imports.

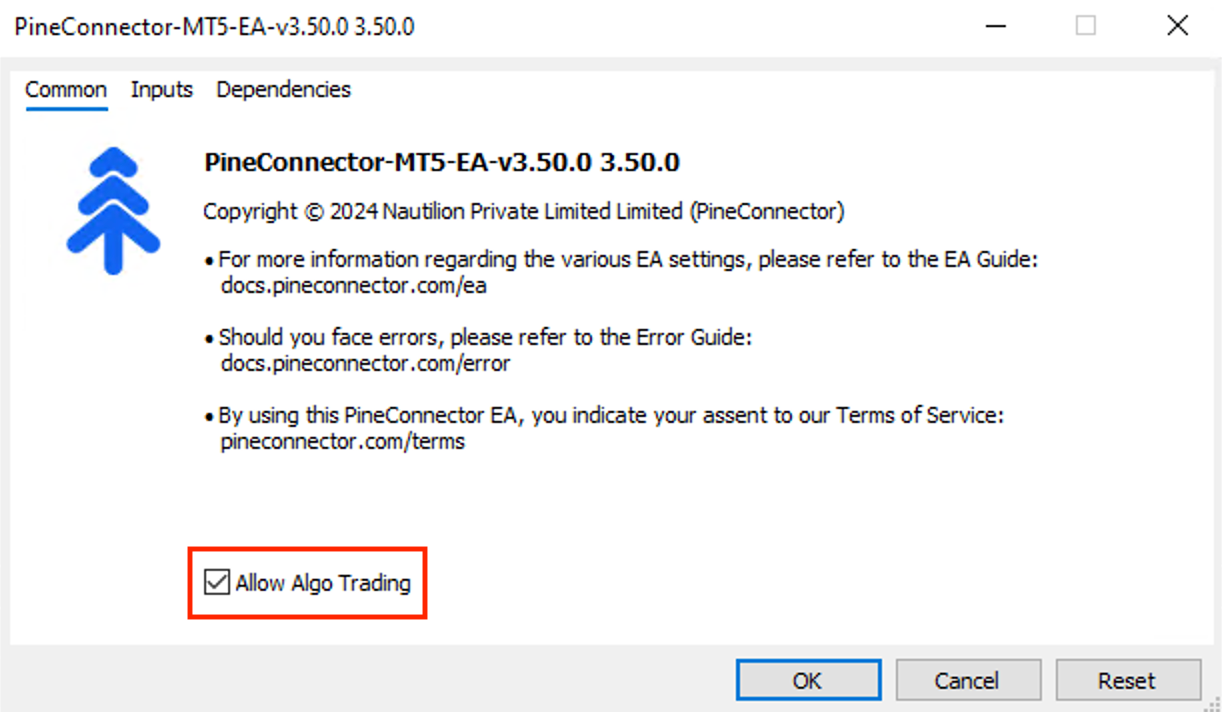

PineConnector EA Common tab with Allow Algo Trading selected
Common tab in the published EA example. The version shown is historical; install the current Portal download.
Common tab in the published EA example. The version shown is historical; install the current Portal download.Open original
PineConnector EA Common tab with Allow Algo Trading selected

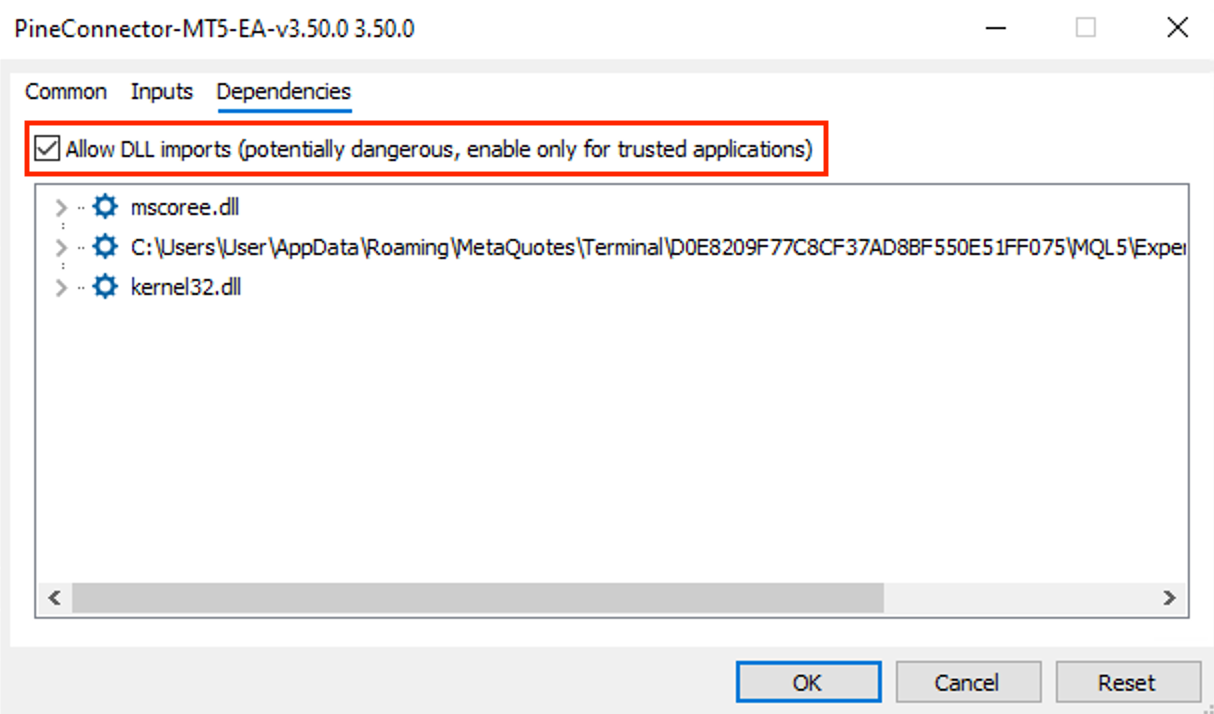

PineConnector EA Dependencies tab with Allow DLL imports selected
Dependencies tab with Allow DLL imports ticked. This EA-level permission is separate from the terminal-level setting.
Dependencies tab with Allow DLL imports ticked. This EA-level permission is separate from the terminal-level setting.Open original
PineConnector EA Dependencies tab with Allow DLL imports selected

Open Connections in Portal and copy the License ID you want this account to use. For an independent demo setup, choose an ID with no other accounts attached. If you need another ID, follow Use a separate License ID. In the EA properties window, select Inputs and paste it into License ID. Select OK to connect.

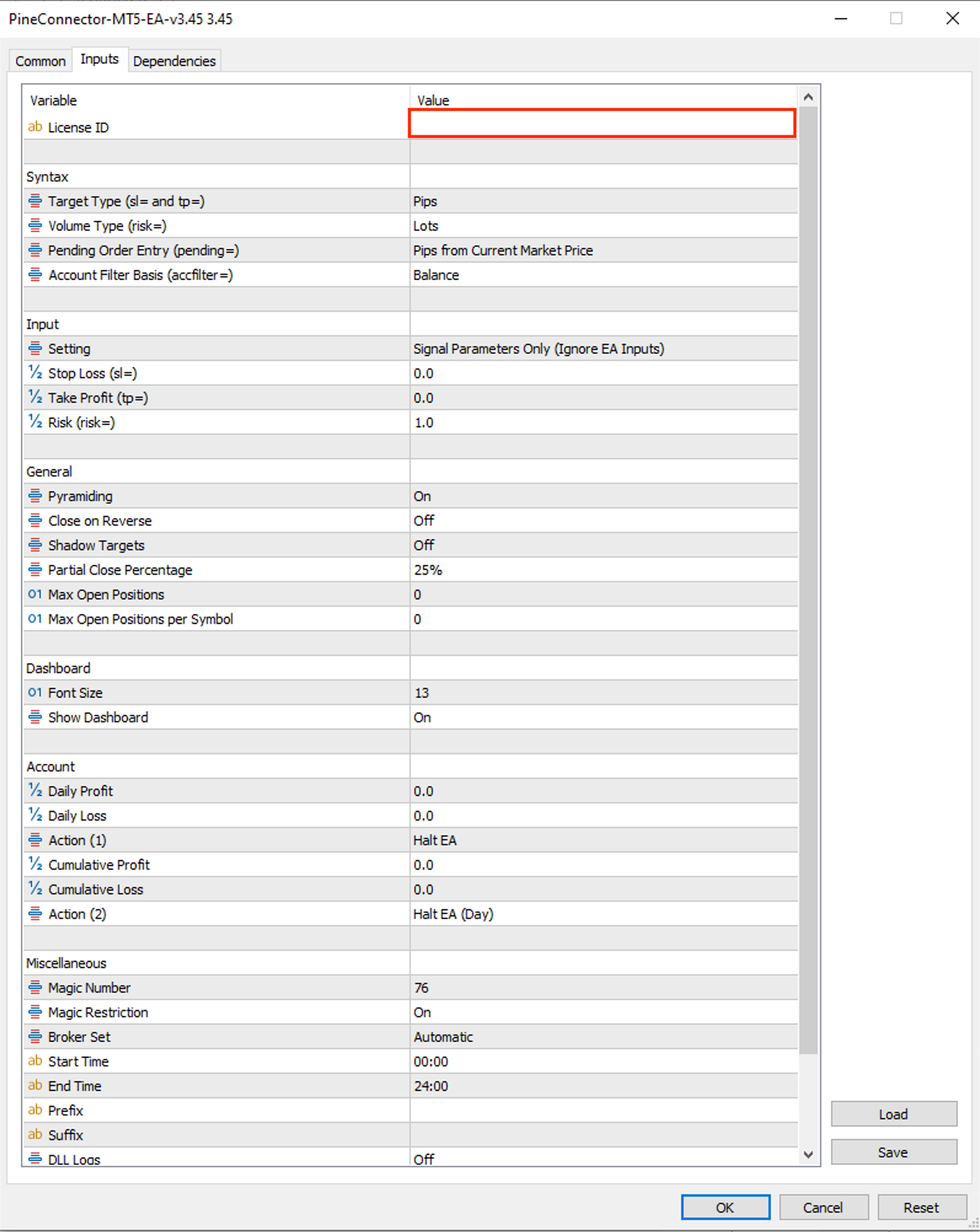

PineConnector EA Inputs with the empty License ID value field outlined
The outlined License ID field on the Inputs tab, in the published v3.45 interface example.
The outlined License ID field on the Inputs tab, in the published v3.45 interface example.Open original
PineConnector EA Inputs with the empty License ID value field outlined

For other inputs, use the EA settings reference. You do not need to change every option to complete the installation.

Return to Connections and locate the trading account. Compare its account number and broker with the terminal you installed.

Open the account card for more detail. A recognisable custom name, such as the broker plus “Demo”, helps distinguish it from another account; use the account-name edit control where available.

Installation is complete when the intended account is connected through the EA.

Before the test stage, check:

  • The intended demo account is connected in Connections.
  • You have copied the License ID assigned to that account.
  • MT5 stays open, signed in and running the EA while you test, and whenever you expect alerts to trade.

The next page checks message delivery and an actual demo order. It is the same test for Edge and self-hosted accounts.

Next · Step 2 of 3Test your setup
What you see First check
EA missing from Navigator Extracted files are in this terminal’s MQL5 → Experts, then refresh Expert Advisors.
Trading or DLL permission error Check both terminal permissions and the EA’s Common/Dependencies tabs.
Wrong account in Portal Compare the terminal’s broker login and the License ID entered in Inputs.
Connection remains absent Read the full message in MT5’s Experts log, then use the error guide.

Do not keep sending test alerts while the destination or connection is unclear. For several accounts on one device, follow Multiple terminals.
